Our high frequency vibratory hammer (F series) features high frequency vibratory hammers equipped with high-frequency motors. Compared to normal vibro hammers, F series products have faster motor speeds, lighter eccentric blocks, and an overall lighter weight, with their maximum centrifugal forces ranging from 2300kN to 3020kN. For your specific requirements, product customization is available. Designed for versatile usage scenarios, F series hammers are ideal for ground improvement, bridge foundations, and building construction, enhancing soil stability and bearing capacity.

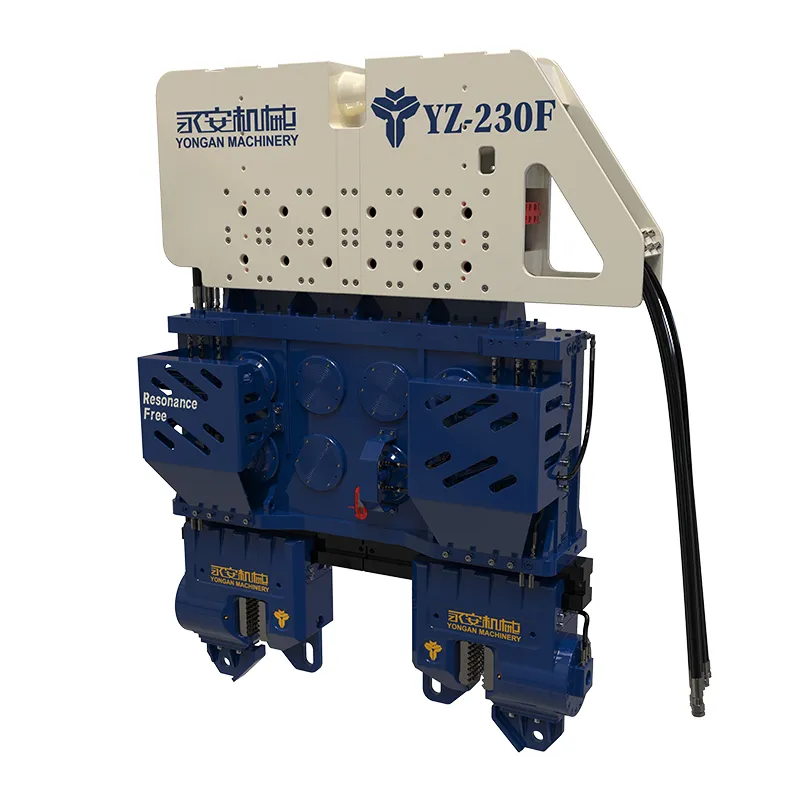

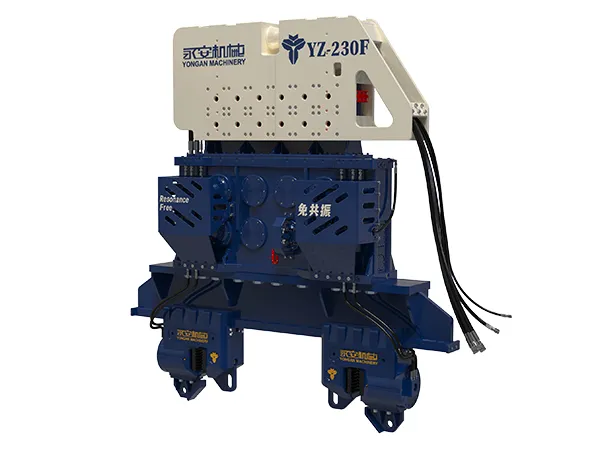

| Model | YZ-230F | |
| Unit | Metric | US |
| Eccentric Moment | 33.5 kg.m | 2908 lbs.in |
| Maximum Frequency | 2500 rpm | 2500 rpm |
| Maximum Centrifugal Force | 2300 kN | 258 tons |
| Maximum Line Pull Force | 800 kN | 90 tons |
| Maximum Amplitude | 20 mm | 0.78 in |
| Maximum Oil Flow | 800 L/min | 211 gpm |
| Weight (without clamps and beam) | 6700 kg | 14771 lbs |
| Dimensions (L×W×H) | 2600×785×2410 mm | 103×31×95 in |
| Recommended Power Pack | 800P | |

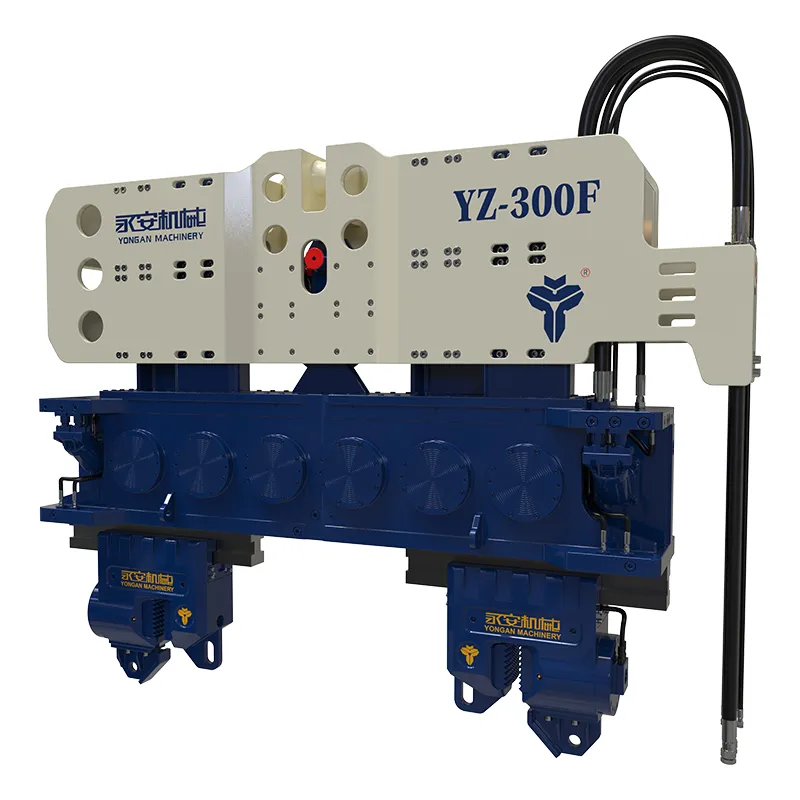

| Model | YZ-300F | |
| Unit | Metric | US |
| Eccentric Moment | 52 kg.m | 4513.6 lbs.in |
| Maximum Frequency | 2300 rpm | 2300 rpm |
| Maximum Centrifugal Force | 3020 kN | 339 tons |
| Maximum Line Pull Force | 800 kN | 90 tons |
| Maximum Amplitude | 16 mm | 0.63 in |
| Maximum Oil Flow | 1200 L/min | 316 gpm |
| Weight (without clamps and beam) | 9600 kg | 21164 lbs |
| Dimensions (L×W×H) | 3855×705×2035 mm | 152×28×80 in |
| Recommended Power Pack | 1200P | |
F series hammers need to be mounted on crawler cranes, rough terrain cranes, or other similar equipment.
Crawler Crane
Floating Crane
Crane-Fitted Barge
Rough Terrain Crane
Piling Barge
