Hydraulic Vibratory Hammer
Medium Size (Max. Centrifugal Force 3630KN)
YZ-150B/YZ-180B/YZ-230B/YZ-300/YZ-360B

Hydraulic Vibratory Hammer

Vibratory pile driving hammer

Our medium size hydraulic vibratory hammer series is your go-to solution for pile driving and extracting, in particular, sheet piles and small to medium-diameter steel tubular piles. We present hammers with a range of maximum centrifugal forces, from 1465kN to 3630kN, for projects that demand robust force. Customization options are available to meet your specific requirements. Ideal for soil compaction and ground improvement, our hammers can be used to enhance soil density and bearing capacity, ensuring stable and secure foundations. For special conditions, such as underwater operations, cold weathers, specific power pack configurations, or engine carbon emission requirements, we offer tailored products to meet your needs.

Hydraulic Vibratory Hammer
Request a Quote
Hydraulic Vibratory Hammer
Request a Quote

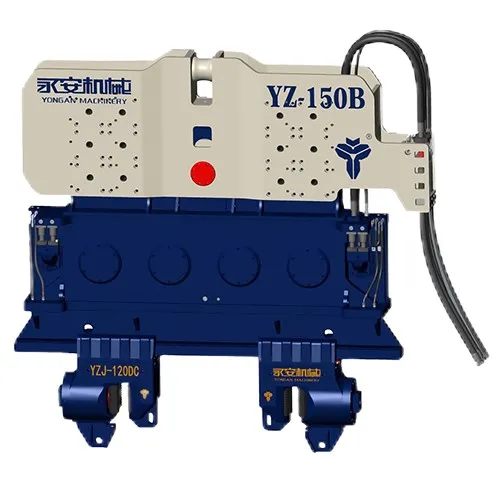

Model YZ-150B
Unit Metric US
Eccentric Moment 46kg.m 3992 lbs.in
Maximum Frequency 1700 rpm 1700 rpm
Maximum Centrifugal Force 1465 kN 164 tons
Maximum Line Pull Force 600 kN 67 tons
Maximum Amplitude 25 mm 0.98 in
Maximum Oil Flow 620 L/min 165 gpm
Weight (without clamps and beam) 5580 kg 12276 lbs
Dimensions (L×W×H) 3050×430×1940 mm 119×17×76 in
Recommended Power Pack 500P
Hydraulic Vibratory Hammer
Request a Quote

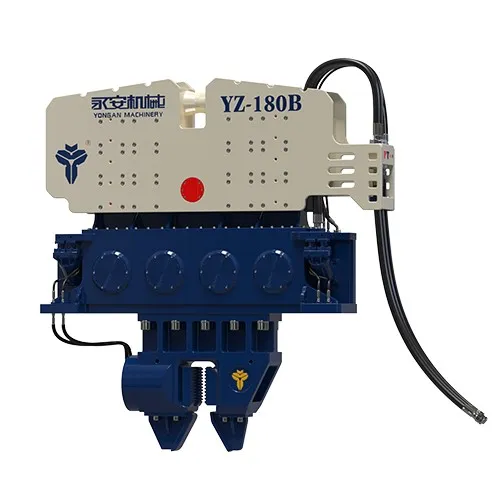

Model YZ-180B
Unit Metric US
Eccentric Moment 51kg.m 4426 lbs.in
Maximum Frequency 1800 rpm 1800 rpm
Maximum Centrifugal Force 1810 kN 203 tons
Maximum Line Pull Force 600 kN 67 tons
Maximum Amplitude 32 mm 1.25 in
Maximum Oil Flow 680 L/min 179 gpm
Weight (without clamps and beam) 5900 kg 13007 lbs
Dimensions (L×W×H) 2845×530×1880 mm 112×21×74 in
Recommended Power Pack 600P
Hydraulic Vibratory Hammer
Request a Quote

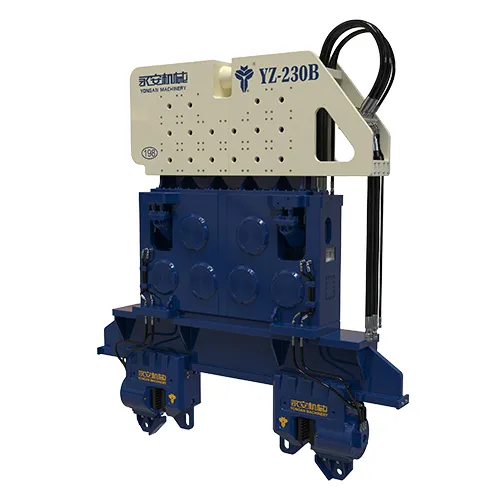

Model YZ-230B
Unit Metric US
Eccentric Moment 76 kg.m 6596 lbs.in
Maximum Frequency 1700 rpm 1700 rpm
Maximum Centrifugal Force 2410 kN 270 tons
Maximum Line Pull Force 800 kN 90 tons
Maximum Amplitude 32 mm 1.25 in
Maximum Oil Flow 800 L/min 211 gpm
Weight (without clamps and beam) 8180 kg 18033 lbs
Dimensions (L×W×H) 2400×530×2380 mm 95×21×94 in
Recommended Power Pack 800P
Hydraulic Vibratory Hammer
Request a Quote

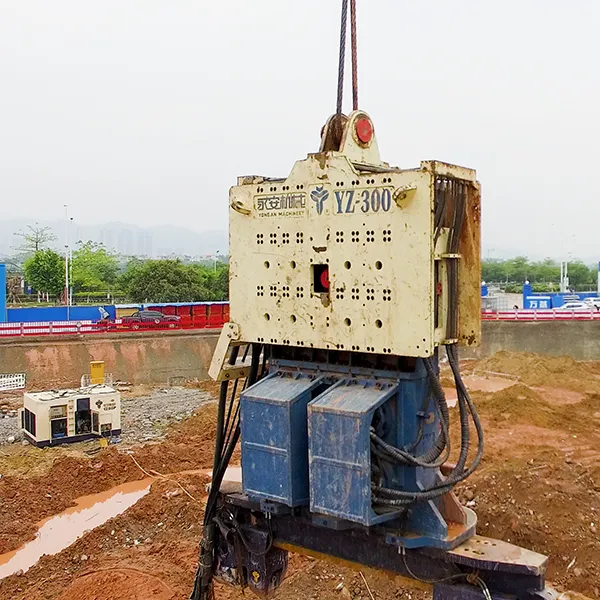

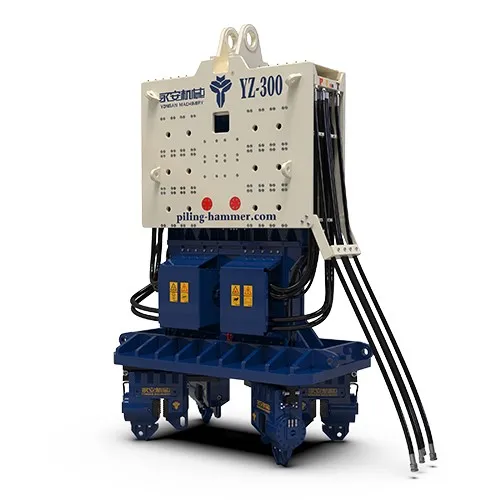

Model YZ-300
Unit Metric US
Eccentric Moment 137 kg.m 11891 lbs.in
Maximum Frequency 1410 rpm 1410 rpm
Maximum Centrifugal Force 3000 kN 337 tons
Maximum Line Pull Force 2000 kN 224 tons
Maximum Amplitude 37 mm 1.45 in
Maximum Oil Flow 1015 L/min 268 gpm
Weight (without clamps and beam) 16000 kg 35274 lbs
Dimensions (L×W×H) 2650×1150×4300 mm 104×45×169 in
Recommended Power Pack 1200P
Hydraulic Vibratory Hammer
Request a Quote

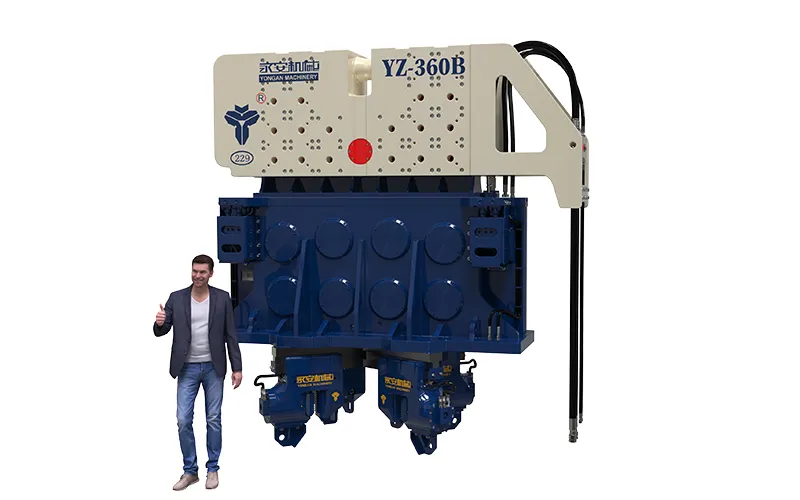

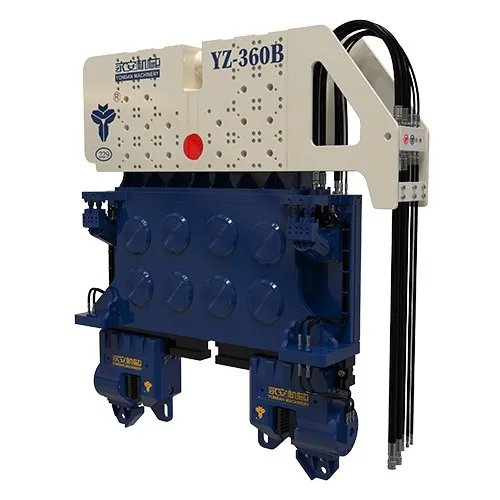

Model YZ-360B
Unit Metric US
Eccentric Moment 102 kg.m 8853 lbs.in
Maximum Frequency 1800 rpm 1800 rpm
Maximum Centrifugal Force 3630 kN 408 tons
Maximum Line Pull Force 1000 kN 112 tons
Maximum Amplitude 29 mm 1.14 in
Maximum Oil Flow 1200 L/min 317 gpm
Weight (without clamps and beam) 10300 kg 22707 lbs
Dimensions (L×W×H) 3150×650×2430 mm 124×25×96 in
Recommended Power Pack 1400P/1600P
Mounting Options

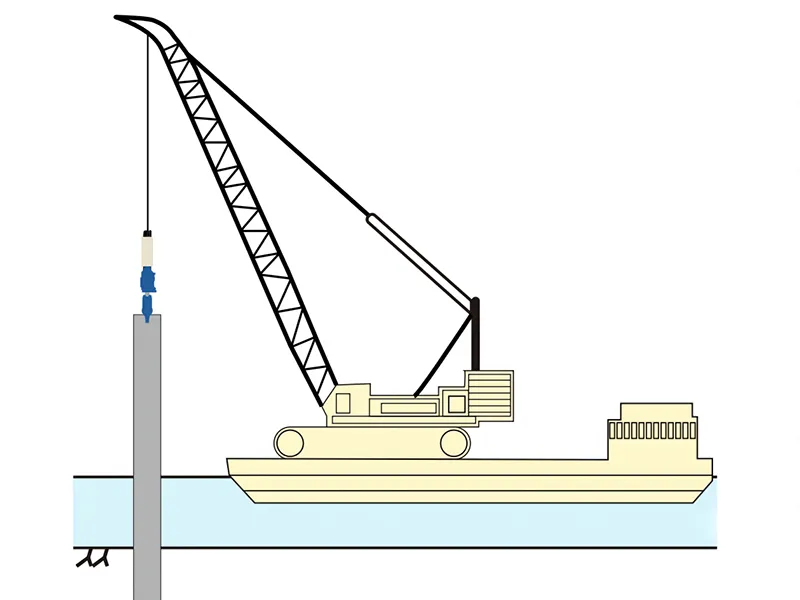

The hammers need to be mounted on crawler cranes for operation.

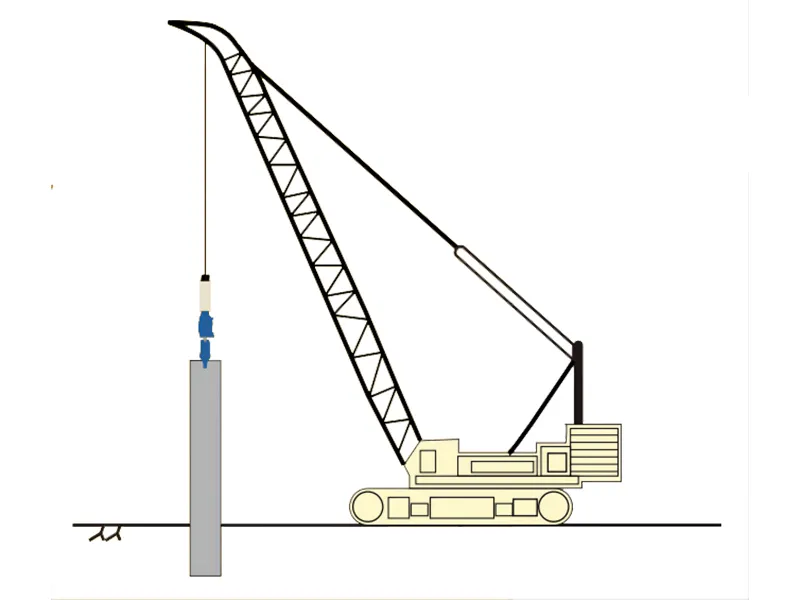

Crawler Crane Crawler Crane

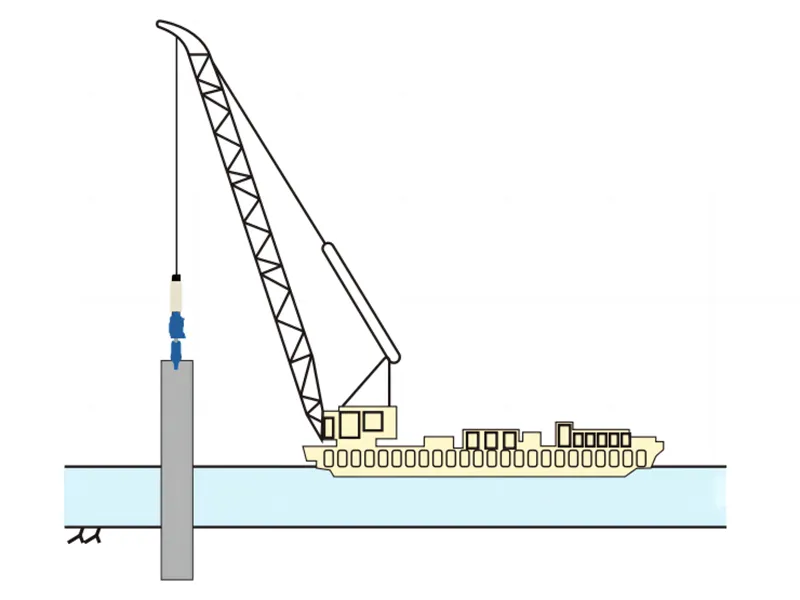

Floating Crane Floating Crane

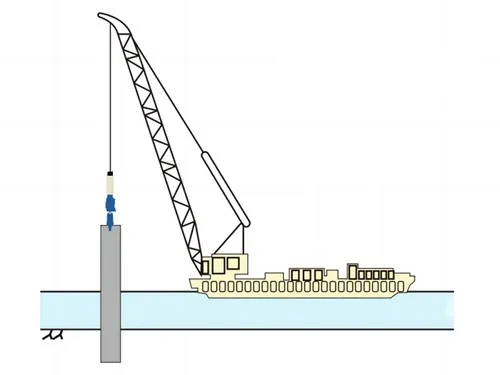

Crane-Fitted Barge Crane-Fitted Barge

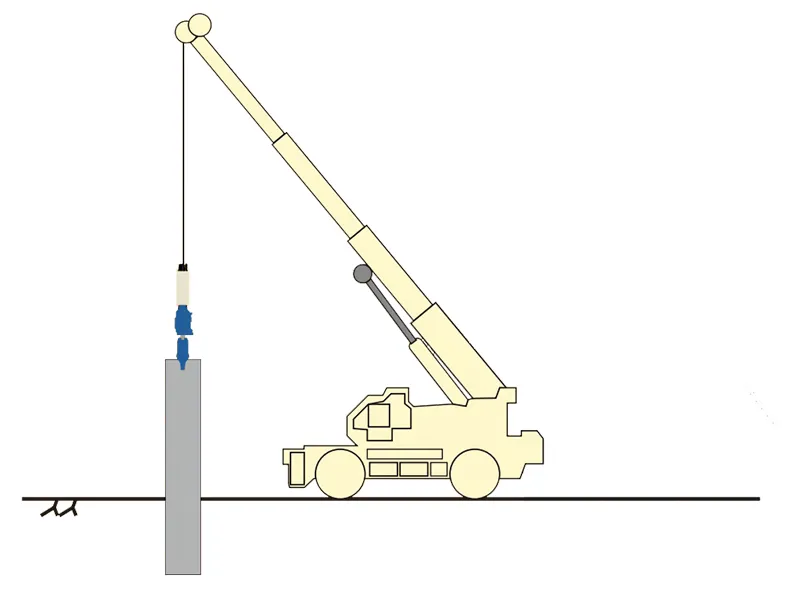

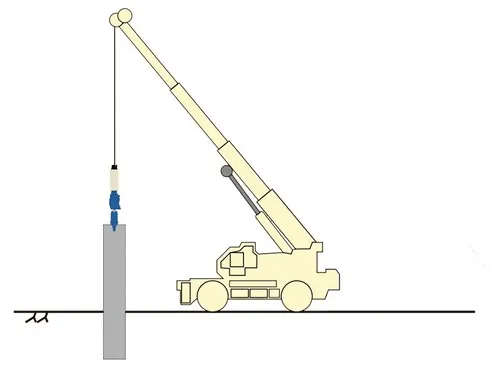

Rough Terrain Crane Rough Terrain Crane

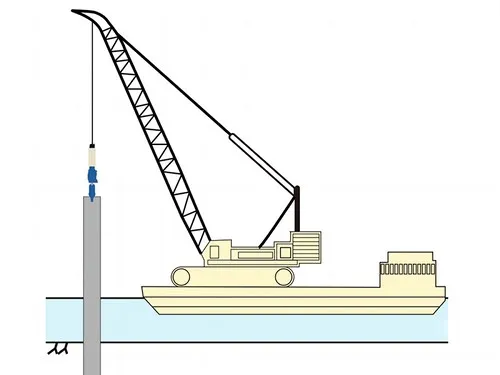

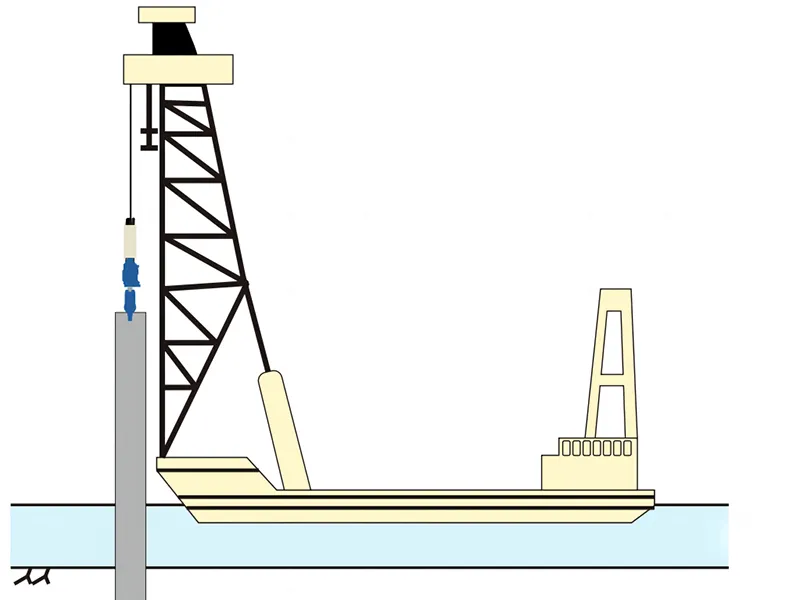

Piling Barge Piling Barge
Applications
  • Civil Infrastructure Construction
  • Sea Bridge Construction
  • Offshore Wind Farm Construction
  • Harbour Construction
  • Oil Platform Construction
Suitable Pile Types
  • Steel Tubular Piles
  • Sheet Piles
Recommended with
Hydraulic Power Pack (Medium)

Hydraulic Power Pack (Medium)

Hydraulic Power Pack (Large Size)

Hydraulic Power Pack (Large Size)

Pile Upending Tool

Pile Upending Tool

Related Case Studies
Construction Projects using YZ-150 Hydraulic Vibratory Hammer
Pile Sinking for Hanjiang River Bridge in Hubei Province
Pile Sinking for Hanjiang River Bridge in Hubei Province
  • Project time: January, 2022
  • Pile type: steel tubular piles
  • Diameter: 630 mm
  • Pile length: 12 m (driving depth: 11 m)
  • Application: pile sinking in a bridge construction
  • Soil type: sandy soil and cobblestones
  • Pile sinking time: 30-40 min
Shanbei Bridge Construction in Guangdong Province
Shanbei Bridge Construction in Guangdong Province
  • Project time: December, 2019
  • Pile type: steel tubular piles
  • Diameter: 2300 mm
  • Pile length: 20 m (driving depth: 12)
  • Application: trestle bridge pile driving
  • Soil type: mud
  • Pile sinking time: 5-10 min

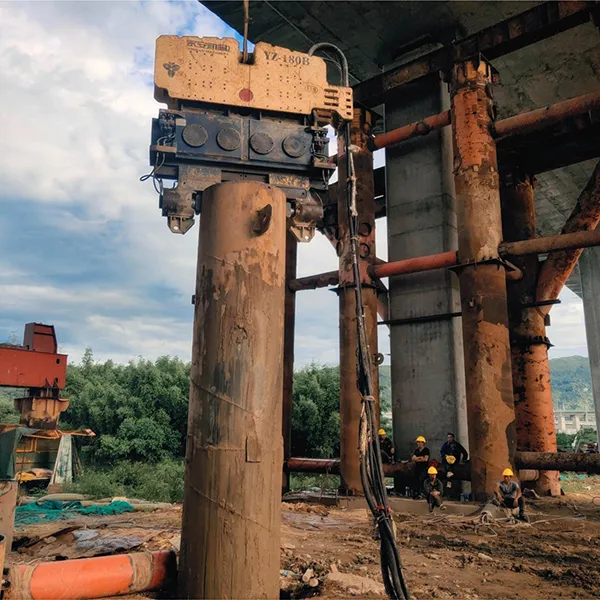

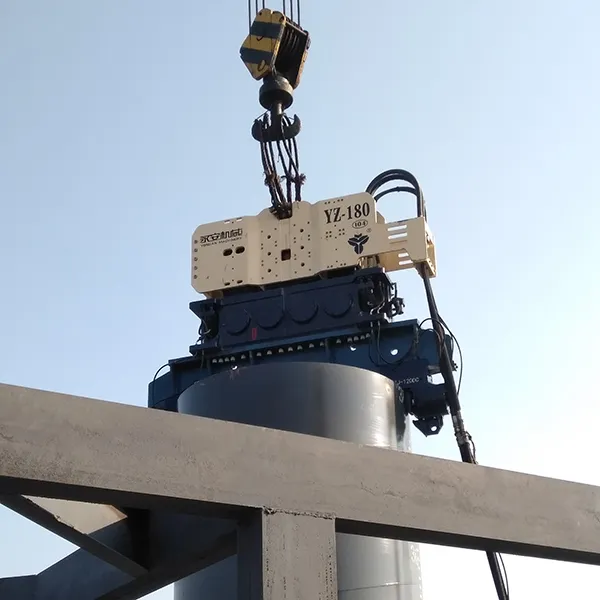

Construction Projects using YZ-180B Hydraulic Vibratory Hammer
New High-speed Railway Construction in Jiujiang City
New High-speed Railway Construction in Jiujiang City
  • Project time: September, 2022
  • Pile type: steel tubular piles
  • Pile Thickness: 12 mm
  • Diameter: 1000/1200 mm
  • Pile length: 24 m (driving depth: 10 m)
  • Application: trestle bridge
  • Soil type: gravel
  • Pile sinking time: 30-60 min
Mazhou Bridge Construction
Mazhou Bridge Construction
  • Project time: June, 2020
  • Pile type: steel tubular piles
  • Pile Thickness: 10 mm
  • Diameter: 1100 mm
  • Pile length: 24 m (driving depth: 23 m)
  • Application: extracting the piles driven with YZ-230B hammer
  • Soil type: yellow soil, paddy soil
  • Pile extraction time: 15-40 min

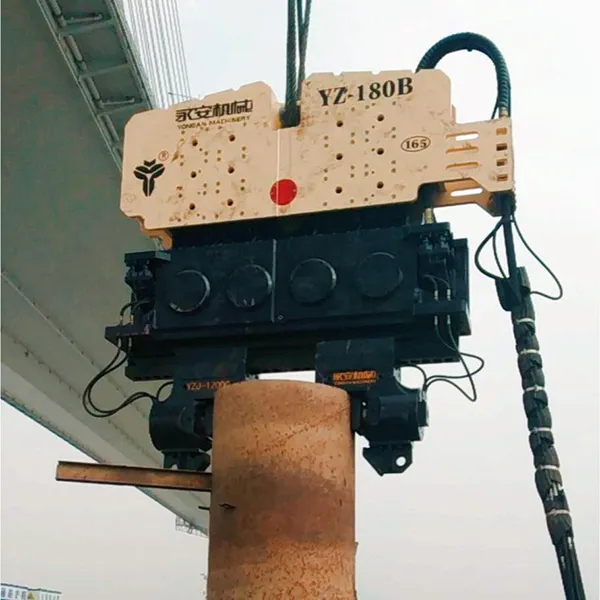

Fifth Nanjing-Yangtze River Bridge Construction
Fifth Nanjing-Yangtze River Bridge Construction
  • Project time: October, 2020
  • Pile type: steel tubular piles
  • Pile Thickness: 12 mm
  • Diameter: 800 mm
  • Pile length: 40 m (driving depth: 30 m)
  • Application: pile driving in a bridge construction
  • Soil type: sandy soil
  • Pile sinking time: 20 min
Shenzhen-Zhongshan Bridge Construction
Shenzhen-Zhongshan Bridge Construction
  • Project time: 2019
  • Pile type: steel tubular piles
  • Diameter: 2800 mm
  • Pile length: 38m, with 2 m of pile underwater
  • Soil type: mud
  • Application: pile driving

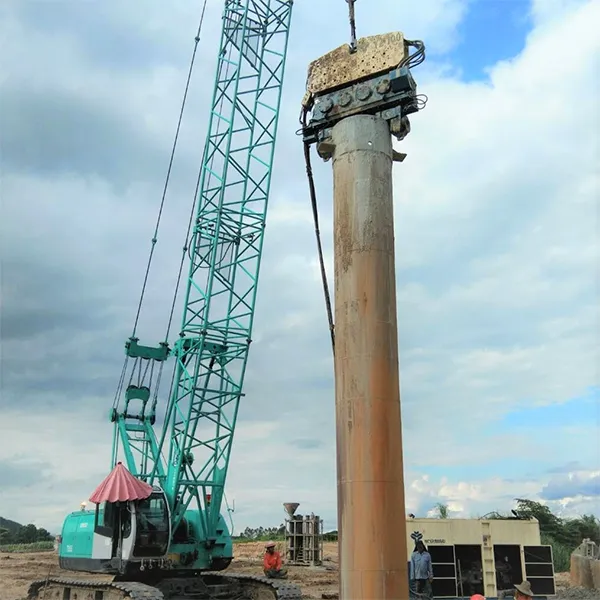

MRT Pink Line Construction in Bangkok, Thailand
MRT Pink Line Construction in Bangkok, Thailand
  • Building the MRT that connects haeng Wattana and Ram Intra and joins several lines
  • Application: pile driving

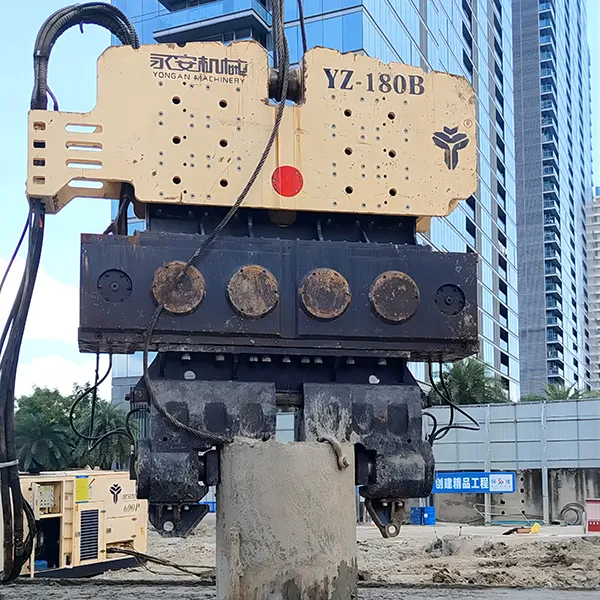

Lucheng Plaza Construction in Wenzhou City, Zhejiang Province
Lucheng Plaza Construction in Wenzhou City, Zhejiang Province
  • Project time: August, 2022
  • Pile type: interlocking steel tubular piles
  • Pile length: 20 m
  • Weight: 6.72 tons
  • Diameter: 915 mm
  • Pile Thickness: 14 mm
  • Application: pile extraction in building construction

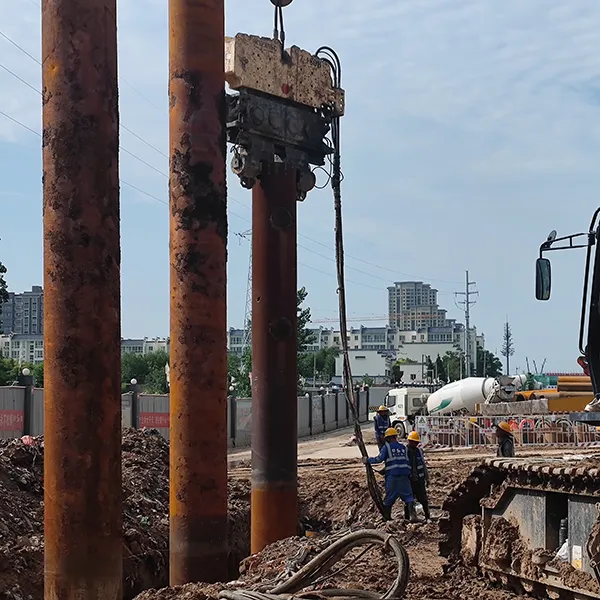

MRT Line 10 Construction in Gaoling District, Xi’an City
MRT Line 10 Construction in Gaoling District, Xi’an City
  • Project time: March, 2022
  • Pile type: interlocking steel tubular piles
  • Pile length: 19 m
  • Diameter: 820 mm
  • Pile Thickness: 20 mm (driving depth: 18 m)
  • Application: cofferdams and gantry crane
  • Soil type: fine sand and clay
  • Pile sinking time: 15-30 min
Construction Projects using YZ-230B Hydraulic Vibratory Hammer

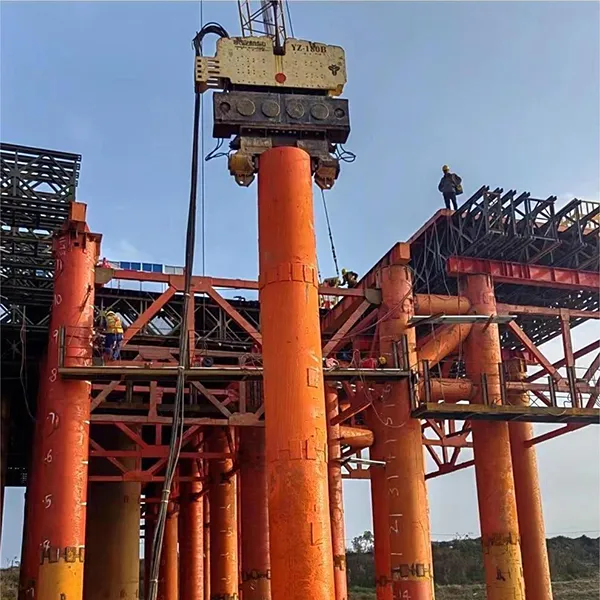

The Seventh Hanjang Bridge Construction in Wuhan City
The Seventh Hanjang Bridge Construction in Wuhan City
  • Project time: January, 2021
  • Pile type: steel tubular piles
  • Diameter: 1000 mm
  • Pile Thickness: 11 mm
  • Pile length: 38 m
  • Application: pile extracting
  • Soil type: mud
  • Pile extraction time: 15-20 min per pile
Fifth Nanjing-Yangtze River Bridge Construction in Foshan City
Fifth Nanjing-Yangtze River Bridge Construction in Foshan City
  • Project time: October, 2020
  • Pile type: steel tubular piles
  • Pile Thickness: 12 mm
  • Diameter: 800 mm
  • Pile length: 40 m (driving depth: 30 m)
  • Application: dock piling installation underwater
  • Soil type: sandy soil
  • Pile sinking time: 50-110 min per pile
Construction Projects using YZ-300 Hydraulic Vibratory Hammer

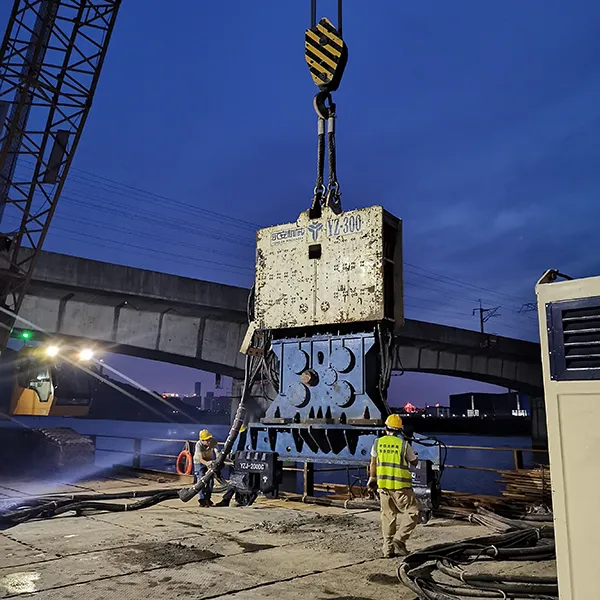

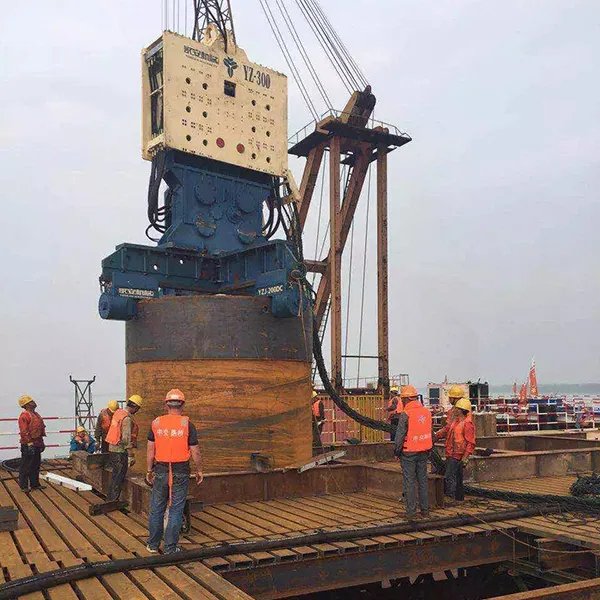

Sutong Yangtze River Bridge Construction
Sutong Yangtze River Bridge Construction
  • Project time: July, 2016
  • Pile type: steel tubular piles
  • Diameter: 3400 mm
  • Pile length: 40 m
Wanda Plaza Building Construction
Wanda Plaza Building Construction
  • Project time: April, 2021
  • Pile type: steel tubular piles
  • Diameter: 2550 mm
  • Pile Thickness: 5 mm
  • Pile length: 17 m (driving depth: 17 m)
  • Application: building foundation
  • Soil type: silt
  • Pile sinking time: about 3 min
Hangzhou-Wenzhou Railway Construction
Hangzhou-Wenzhou Railway Construction
  • Project time: July, 2021
  • Pile type: steel tubular piles
  • Diameter: 2700 mm
  • Pile Thickness: 15 mm
  • Pile length: 24 m (driving depth: 20 m)
  • Application: railway foundation
  • Soil type: sandy soil
  • Piling time: 25-35 min
Construction Projects using YZ-360B Hydraulic Vibratory Hammer
High-speed Railway Construction in Longzihu District
High-speed Railway Construction in Longzihu District
  • Project time: November, 2020
  • Pile type: interlocking steel tubular piles
  • Diameter: 820 mm
  • Pile Thickness: 120mm
  • Pile length: 36 m (driving depth: 20 m)
  • Application: cofferdam piling
  • Soil type: silt
  • Pile extraction time: about 30 min
Sea Bridge Construction in Zhuhai City
Sea Bridge Construction in Zhuhai City
  • Project time: March, 2023
  • Pile type: steel tubular piles
  • Diameter: 820 mm
  • Pile Thickness: 10 mm
  • Pile length: 38-42 m (driving depth: 30-35 m)
  • Application: bridge piling
  • Soil type: mud
  • Pile extraction time: 30-40 min
Yongning Bridge Construction in Wenzhou City
Yongning Bridge Construction in Wenzhou City
  • Project time: November, 2022
  • Pile type: steel tubular piles
  • Diameter: 1000 mm
  • Pile Thickness: 10 mm
  • Pile length: 48 m (driving depth: 36 m)
  • Application: trestle bridge platform
  • Piling time: 20 min
