Introducing our medium size hydraulic power pack, a well-designed power unit providing reliable hydraulic support for medium-sized projects. Perfectly suited for medium excavators, rollers, concrete pumps, and other construction machinery, it delivers efficient and powerful hydraulic output.
Ideal for medium-scale construction projects, our power packs offer robust hydraulic support for excavating, compacting, and concrete pumping tasks. Also, they are suitable for medium excavators, rollers, concrete pumps, and various engineering operations.

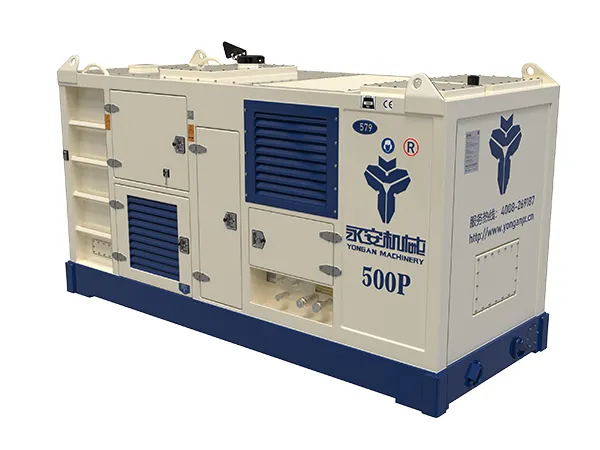

| Model | 500P | |
| Generator Type | Cummins QSM11-C400 | - |
| Maximum Power | 298 kW | 400 hp |
| Maximum Frequency | 2100 rpm | - |
| Maximum Working Pressure | 320 bar | 4641 psi |
| Maximum Oil Flow | 500 L/min | 132 US gpm |
| Fuel Tank Volume | 500 liters | 132 US gallons |
| Hydraulic Oil Tank Volume | 1600 liters | 422 US gallons |
| Weight | 6000 kg | 13227 lbs |
| Control System | Control panel | Remote control |
| Dimensions (L×W×H) | 3900×1520×2100 mm | |

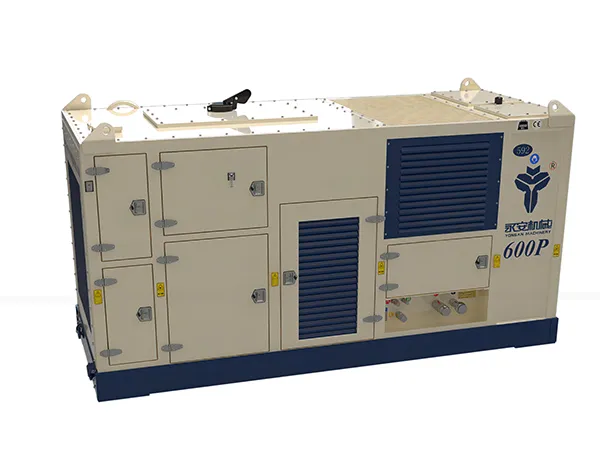

| Model | 600P | |
| Generator Type | Cummins QSZ13-C550 | - |
| Maximum Power | 410 kW | 550 hp |
| Maximum Frequency | 1900 rpm | - |
| Maximum Working Pressure | 320 bar | 4641 psi |
| Maximum Oil Flow | 630 L/min | 166 US gpm |
| Fuel Tank Volume | 600 liters | 158 US gallons |
| Hydraulic Oil Tank Volume | 2000 liters | 528 US gallons |
| Weight | 8200 kg | 18077 lbs |
| Control System | Control panel | Remote control |
| Dimensions (L×W×H) | 4550×1820×2400 mm | |

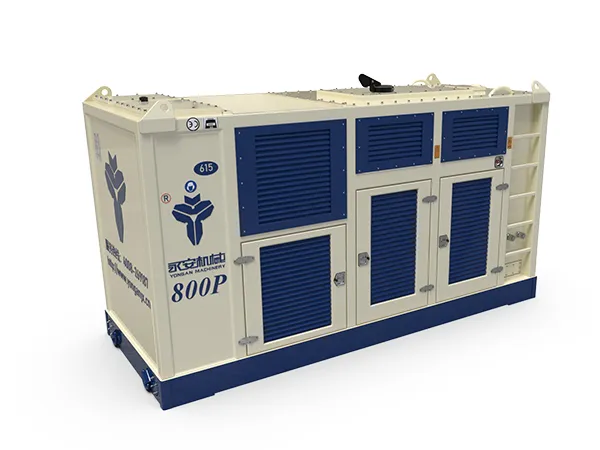

| Model | 800P | |
| Generator Type | TAD1643VE-B | - |
| Maximum Power | 565 kW | 768 hp |
| Maximum Frequency | 1900 rpm | - |
| Maximum Working Pressure | 320 bar | 4641 psi |
| Maximum Oil Flow | 800 L/min | 211 US gpm |
| Fuel Tank Volume | 600 liters | 158 US gallons |
| Hydraulic Oil Tank Volume | 2200 liters | 581 US gallons |
| Weight | 9000 kg | 19841 lbs |
| Control System | Control panel | Remote control |
| Dimensions (L×W×H) | 4550×1820×2400 mm | |

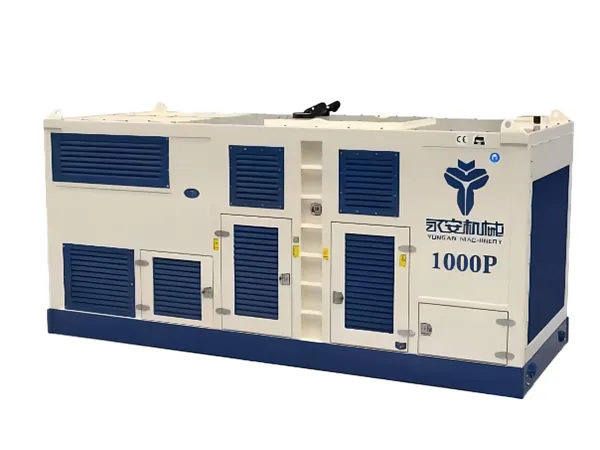

| Model | 1000P | |
| Generator Type | Weichai 6M33G915E304 | - |
| Maximum Power | 670 kW | 915 hp |
| Maximum Frequency | 1900 rpm | - |
| Maximum Working Pressure | 320 bar | 4641 psi |
| Maximum Oil Flow | 1000 L/min | 264 US gpm |
| Fuel Tank Volume | 1100 liters | 290 US gallons |
| Hydraulic Oil Tank Volume | 2700 liters | 713 US gallons |
| Weight | 10500 kg | 234148 lbs |
| Control System | Control panel | Remote control |
| Dimensions (L×W×H) | 5650×1920×2550 mm | |
