Introducing our small size hydraulic power packs, your efficient hydraulic power solutions for various small-scale machinery and tools. These portable power packs provide stable and reliable power output, making them ideal for small construction projects.
Perfect for small-scale construction, roadwork, repair, and maintenance projects, our power packs offer reliable support for small excavators, rollers, hydraulic tools, and more.

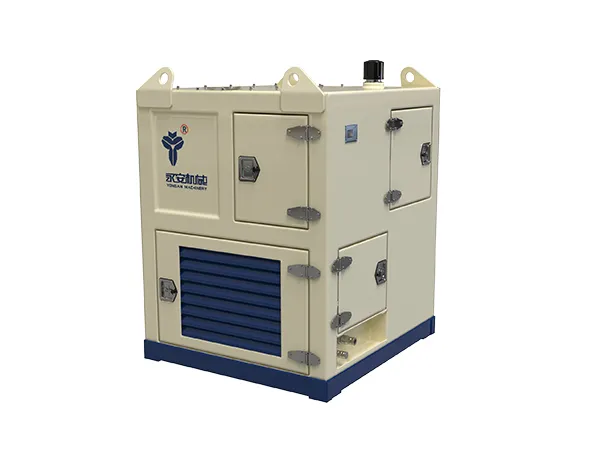

| Model | 40P | |
| Generator Type | YE3-180L-4 | - |
| Maximum Power | 22 kW | - |
| Maximum Frequency | 1470 rpm | - |
| Maximum Working Pressure | 300 bar | 4351 psi |
| Maximum Oil Flow | 40 L/min | 10.5 US gpm |
| Fuel Tank Volume | 460 liters | 121.5 US gallons |
| Hydraulic Oil Tank Volume | 250 liters | 66 US gallons |
| Weight | 1500 kg | 3307 lbs |
| Control System | Control panel | Remote control |
| Dimensions (L×W×H) | 1312×1212×1650 mm | |

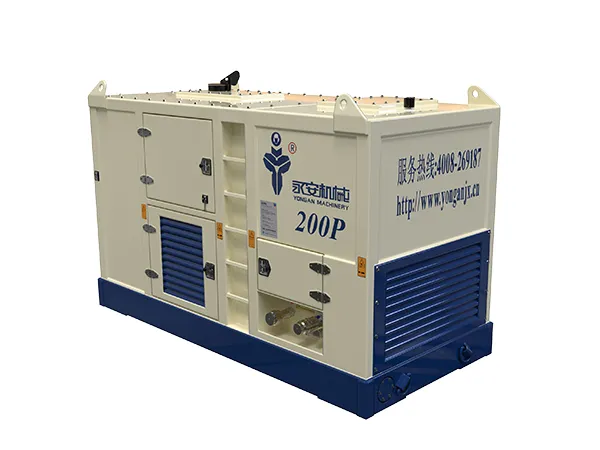

| Model | 200P | |
| Generator Type | Cummins 6BTAA5.9-C205 | - |
| Maximum Power | 153 kW | 205 hp |
| Maximum Frequency | 2200 rpm | - |
| Maximum Working Pressure | 320 bar | 4641 psi |
| Maximum Oil Flow | 200 L/min | 52 US gpm |
| Fuel Tank Volume | 400 liters | 105 US gallons |
| Hydraulic Oil Tank Volume | 800 liters | 211 US gallons |
| Weight | 3500 kg | 7716 lbs |
| Control System | Control panel | Remote control |
| Dimensions (L×W×H) | 3300×1520×2050 mm | |

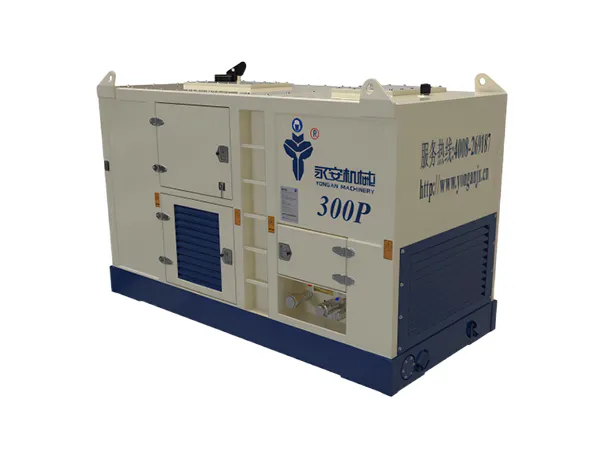

| Model | 300P | |
| Generator Type | Cummins 6CAT8.3-C260 | - |
| Maximum Power | 194 kW | 260 hp |
| Maximum Frequency | 2000 rpm | - |
| Maximum Working Pressure | 320 bar | 4641 psi |
| Maximum Oil Flow | 300 L/min | 79 US gpm |
| Fuel Tank Volume | 450 liters | 118 gallons |
| Hydraulic Oil Tank Volume | 1200 liters | 317 gallons |
| Weight | 5000 kg | 11023 lbs |
| Control System | Control panel | Remote control |
| Dimensions (L×W×H) | 3300×1520×2050 mm | |

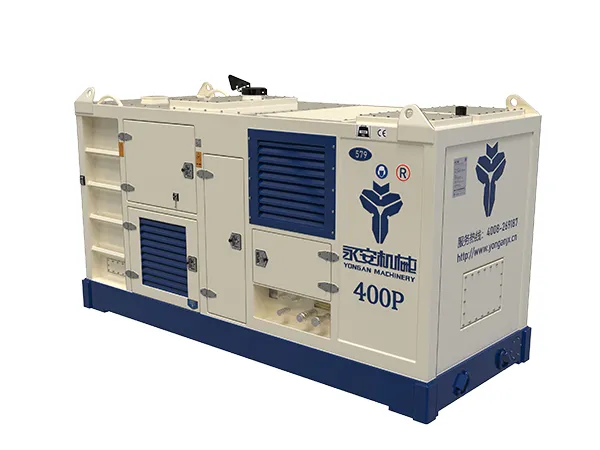

| Model | 400P | |
| Generator Type | Cummins QSL8.9-C360 | - |
| Maximum Power | 264 kW | 360 hp |
| Maximum Frequency | 2200 rpm | - |
| Maximum Working Pressure | 320 bar | 4641 psi |
| Maximum Oil Flow | 400 L/min | 105 US gpm |
| Fuel Tank Volume | 500 liters | 132 US gallons |
| Hydraulic Oil Tank Volume | 1400 liters | 369 US gallons |
| Weight | 6000 kg | 13227 lbs |
| Control System | Control panel | Remote control |
| Dimensions (L×W×H) | 3900×1520×2100 mm | |
