Our large size electric vibratory hammers are high-performance engineering tools powered by electricity, making them eco-friendly and efficient. They feature FAG X-life series spherical roller bearings that are specifically designed for vibratory hammers, ensuring over five times the lifespan of standard hammers. With motor power ranging from 200KW to 600KW, they are ideal for driving and extracting large piles to enhance soil density and load-bearing capacity. Customization is available to meet your specific requirements.
Request a Quote
Customizable Options
Customized options for hydraulic clamps are available
Request a Quote

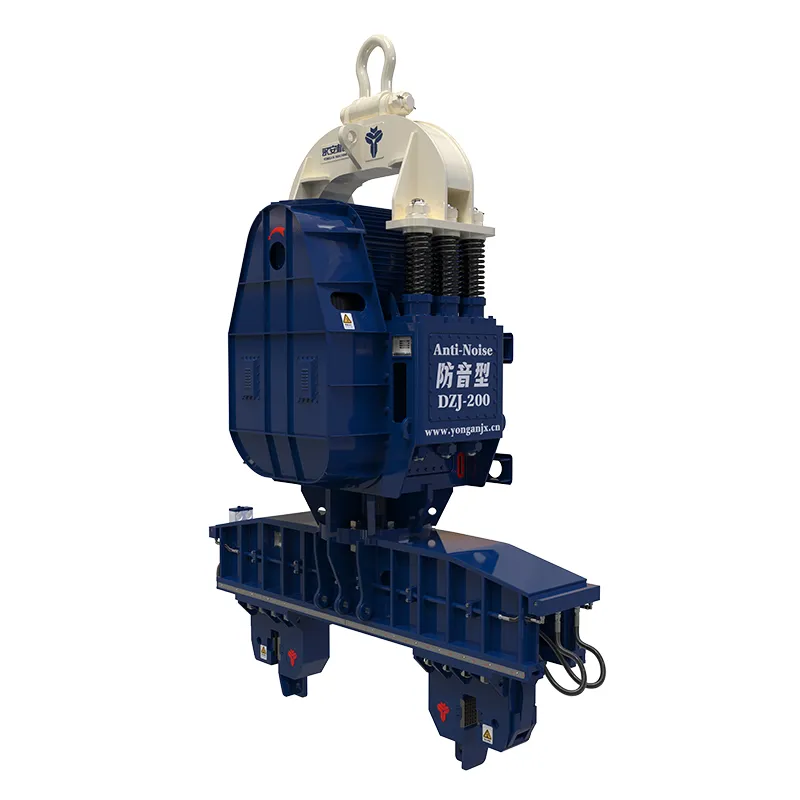

Model
DZJ-200
Motor Power (kW)
200
Eccentric Moment (Nm)
1640
Centrifugal Force (kN)
0-1600
Frequency (rpm)
0-960
Maximum Amplitude (mm)
0-16
Maximum Line Pull (kN)
588
Dimensions (L×W×H) (mm)
2150×1750×3250
Weight (without clamp) (kg)
11500
Cable (mm²)
120
Clamp Scope (mm)
800-3000
Generator Capacity (kW)
450
Minimum Crane Capacity (ton)
120
Request a Quote

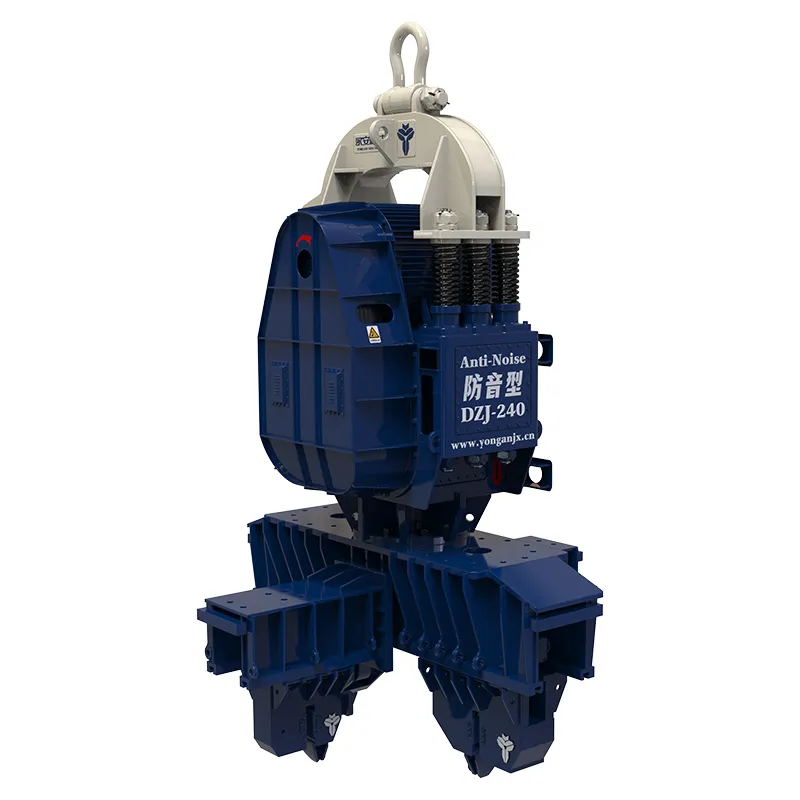

Model
DZJ-240
Motor Power (kW)
240
Eccentric Moment (Nm)
1804
Centrifugal Force (kN)
0-1822
Frequency (rpm)
0-960
Maximum Amplitude (mm)
0-14
Maximum Line Pull (kN)
638
Dimensions (L×W×H) (mm)
2300×1850×3400
Weight (without clamp) (kg)
14500
Cable (mm²)
120
Clamp Scope (mm)
800-3000
Generator Capacity (kW)
600
Minimum Crane Capacity (ton)
130
Request a Quote

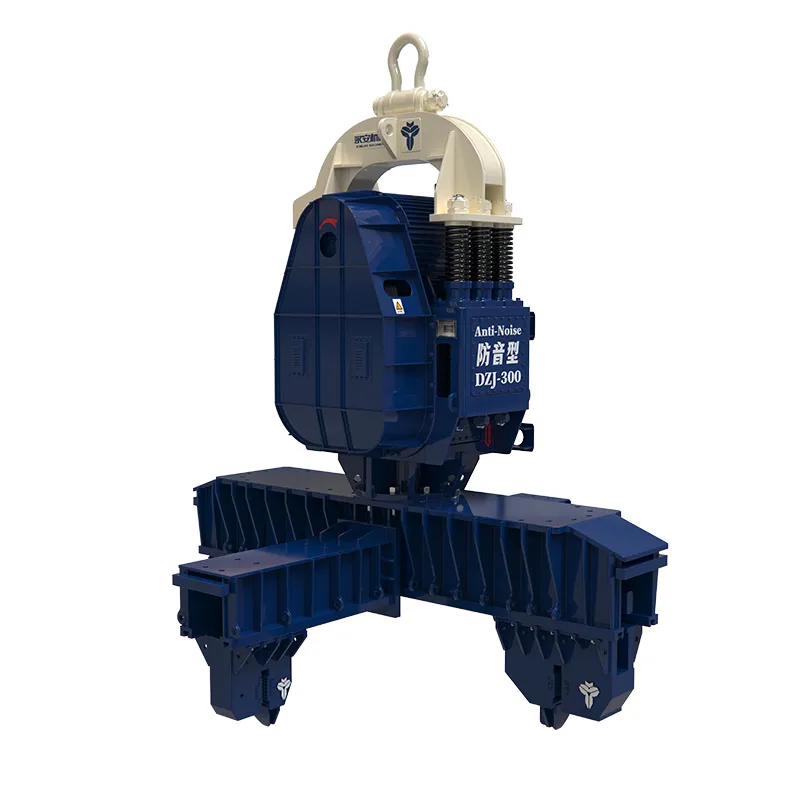

Model
DZJ-300
Motor Power (kW)
300
Eccentric Moment (Nm)
2164
Centrifugal Force (kN)
0-2185
Frequency (rpm)
0-960
Maximum Amplitude (mm)
0-16.5
Maximum Line Pull (kN)
686
Dimensions (L×W×H) (mm)
2450×2000×3450
Weight (without clamp) (kg)
15000
Cable (mm²)
120
Clamp Scope (mm)
800-3000
Generator Capacity (kW)
600
Minimum Crane Capacity (ton)
130
Request a Quote

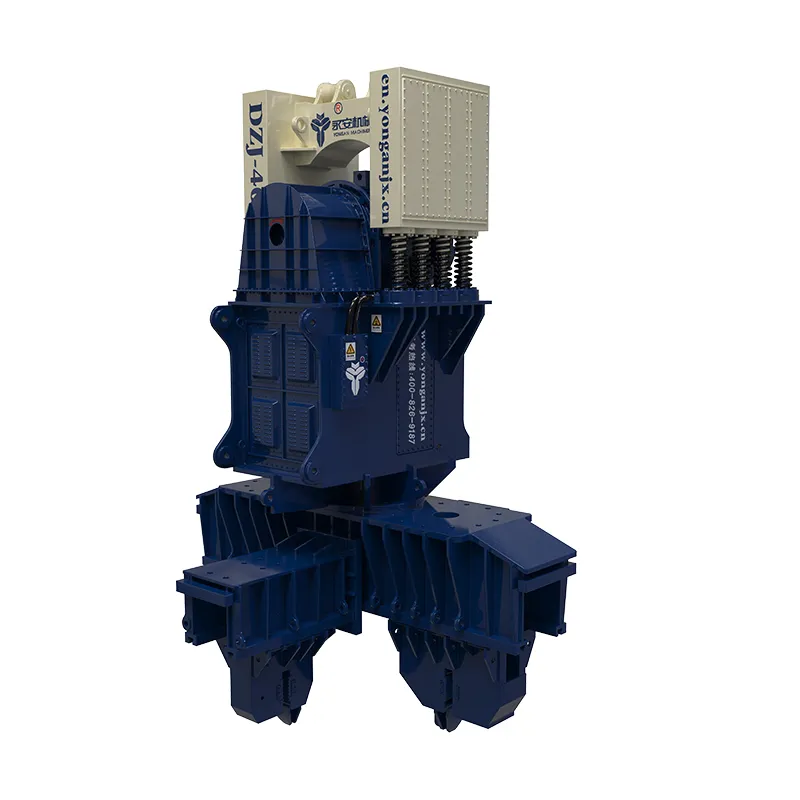

Model
DZJ-400
Motor Power (kW)
400
Eccentric Moment (Nm)
3180
Centrifugal Force (kN)
0-3250
Frequency (rpm)
0-960
Maximum Amplitude (mm)
0-16
Maximum Line Pull (kN)
850
Dimensions (L×W×H) (mm)
2150×2350×4800
Weight (without clamp) (kg)
25000
Cable (mm²)
120
Clamp Scope (mm)
800-3000
Generator Capacity (kW)
800
Minimum Crane Capacity (ton)
200
Request a Quote

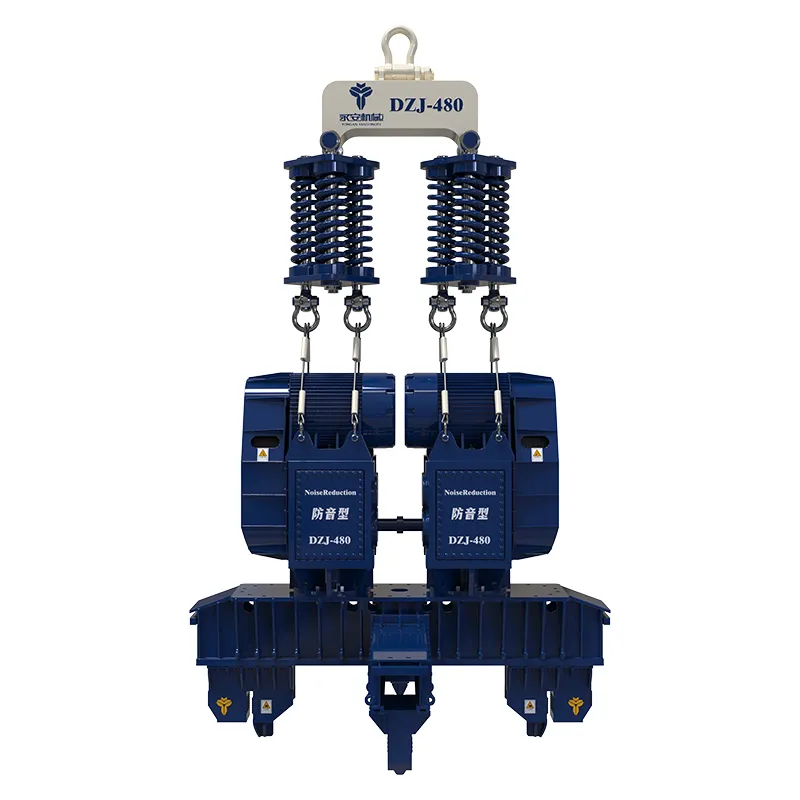

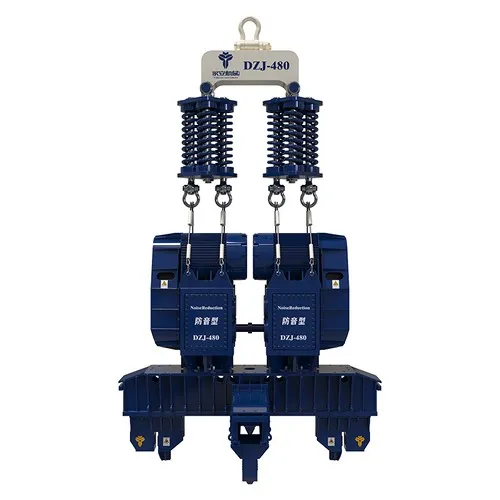

Model
DZJ-480
Motor Power (kW)
480
Eccentric Moment (Nm)
3608
Centrifugal Force (kN)
0-3644
Frequency (rpm)
0-960
Maximum Amplitude (mm)
0-14
Maximum Line Pull (kN)
1176
Dimensions (L×W×H) (mm)
4000×1950×5300
Weight (without clamp) (kg)
30000
Cable (mm²)
120
Clamp Scope (mm)
/
Generator Capacity (kW)
800
Minimum Crane Capacity (ton)
200
Request a Quote

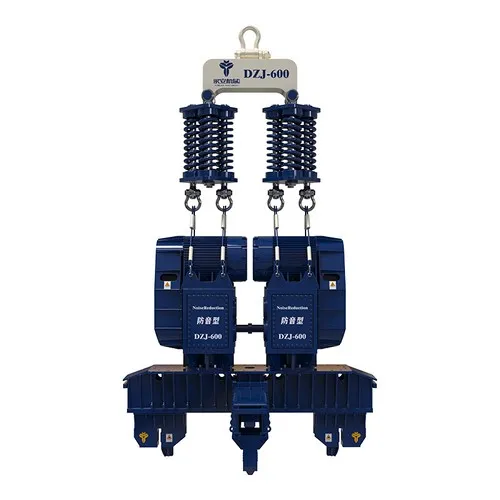

Model

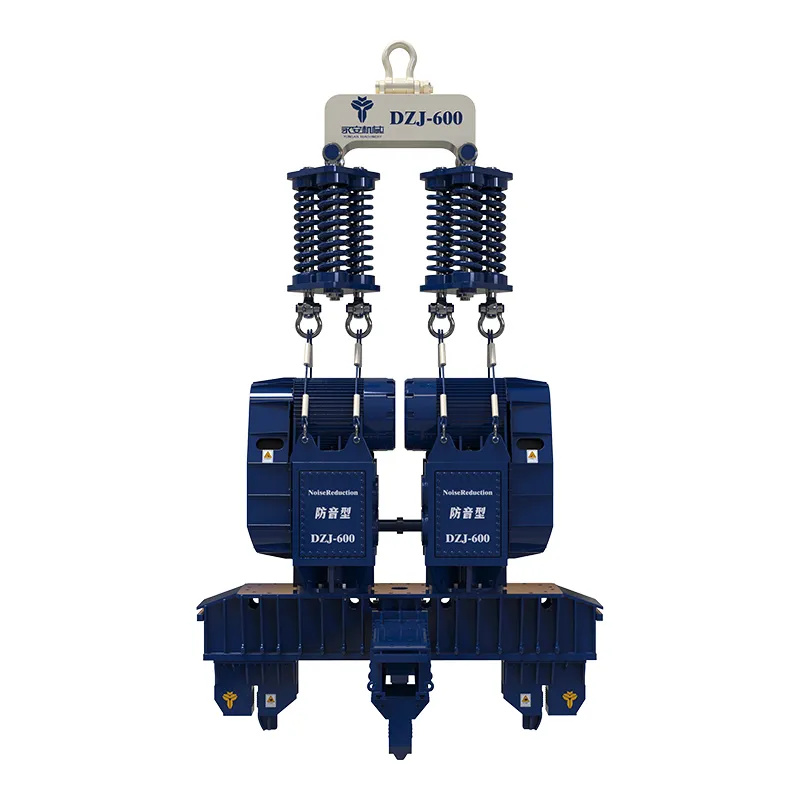

DZJ-600
Motor Power (kW)
600
Eccentric Moment (Nm)
4328
Centrifugal Force (kN)
0-4370
Frequency (rpm)
0-960
Maximum Amplitude (mm)
0-16.5
Maximum Line Pull (kN)
1352
Dimensions (L×W×H) (mm)
4420×2150×5500
Weight (without clamp) (kg)
30500
Cable (mm²)
150
Clamp Scope (mm)
/
Generator Capacity (kW)
800
Minimum Crane Capacity (ton)
200
Mounting Options

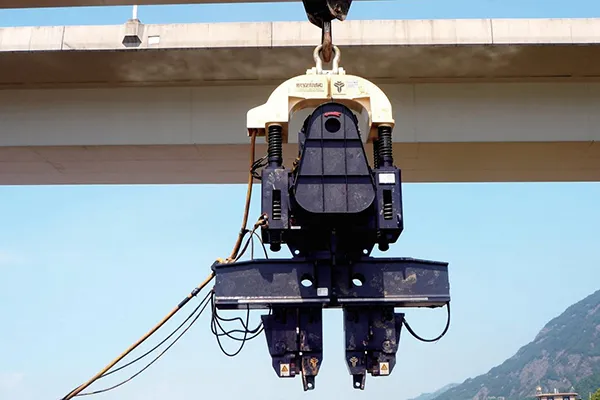

Operated by suspending the electric vibratory hammer using cranes for construction.
Crawler Crane
Floating Crane
Crawler Rig Lead Supported
Crane-Fitted Barge
Rough Terrain Crane
Piling Barge
